美国ATN NVG-7二代增强型夜视仪
作者:成都新瑞测绘  来源:新瑞测绘  浏览:695次  更新:2009-8-17 13:50:55

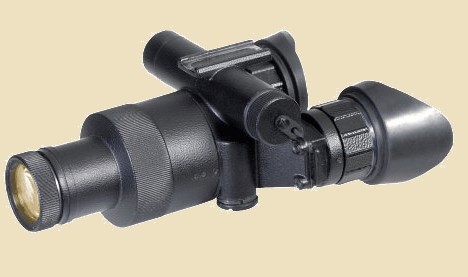

美国ATN NVG-7二代增强型夜视仪

美国ATN双筒夜视仪NVG-7二代增强型

『产品参数』
黑技术:标准型
放大倍数:1X(光学 3X,5X)
侦测范围:180米
识别范围:100米
镜头系统:25毫米,F1:1.2
视 场:40度
聚焦范围:0.25米至无穷远
屈光度调节:-6至+5
护目伸缩距离:15毫米
出瞳距离:16毫米
可调节头戴底座:具有弹起功能,标准型
电 池:1节1.5v AA
电池寿命:10-20小时
控制方式:数控式/红外视野指示器
尺寸大小:140×100×60毫米
重 量:0.45KG

『特性』
    NVG7是免提型夜视仪中的不二选择。做工紧凑,重量轻(标准版PVS7略重略大)并且坚固(金属非塑料),性能卓越。NVG7可选配宽幅图象放大器以满足大范围观察的特殊要求。NVG7同样配有为黑暗环境准备的红外灯。

    NVG7内置有红外灯,全黑环境中会在视野中亮起“ON”字样指示灯并且配有头戴装置。

    NVG7可选配宽幅图象放大器以满足大范围观察的特殊要求。
    NVG7单筒夜视仪供个人使用的复杂光学电子设备。该设备由物镜组,目镜和机身组成。机身包含一个图象放大管,并配有一个高压电源和一个电池仓。
    物镜保护盖是为了保护物镜被刮伤和灰尘进入。保护盖同时也是一个日光过滤器,允许您在白天或者其他亮光条件下测试夜视仪视野状况。保护盖中央的针孔使用户在日光条件下检查仪器的操作能力。












U.S. ATN Night Vision Binocular NVG-7 second-generation enhanced

Parameter 』『 Products
And technology: the standard model
Magnification: 1X (Optical 3X, 5X)
Detection range: 180 meters
Recognition range: 100 meters
Lens System: 25 mm, F1: 1.2
Field: 40 degrees
Focus Range: 0.25 meters to infinity
Diopter adjustment: -6 to +5
Conservation head telescopic distance: 15 mm
A pupil distance: 16 mm
Adjustable head cradle: with bounce function, standard
Battery: one 1.5v AA
Battery Life :10-20 hours
Control Mode: NC-style / infrared vision indicator
Size: 140 × 100 × 60 mm
Weight: 0.45KG

』『 Characteristics
     NVG7 is a hands-free type of night vision the only option. Work compact, light weight (standard version PVS7 slightly larger weight) and rugged (metal not plastic), high performance. Wide NVG7 image-matching amplifier to meet the needs of a wide range of special requirements observed. NVG7 the dark for the same preparation with infrared light.
     NVG7 built-in infrared light, all-black environment in the field of vision in the light "ON" with the words light and wearing a device.

     Wide NVG7 image-matching amplifier to meet the needs of a wide range of special requirements observed.
     Single NVG7 for personal use night-vision optical electronic equipment complex. The device by the lens group, eyepiece and body composition. Body contains an image to enlarge tubes, and with a high voltage power supply and a battery position.
     Objective lens protective cover to protect the lens was scratched and dust to enter. Protective cover is also a solar filter that allows you to light during the day or night vision field of vision under the conditions of the test situation. Cover to protect the central pinhole allows users to check in daylight conditions, the ability to operate equipment.
